Cmpn Model Nauta Type Dry Powder Mixer Machine

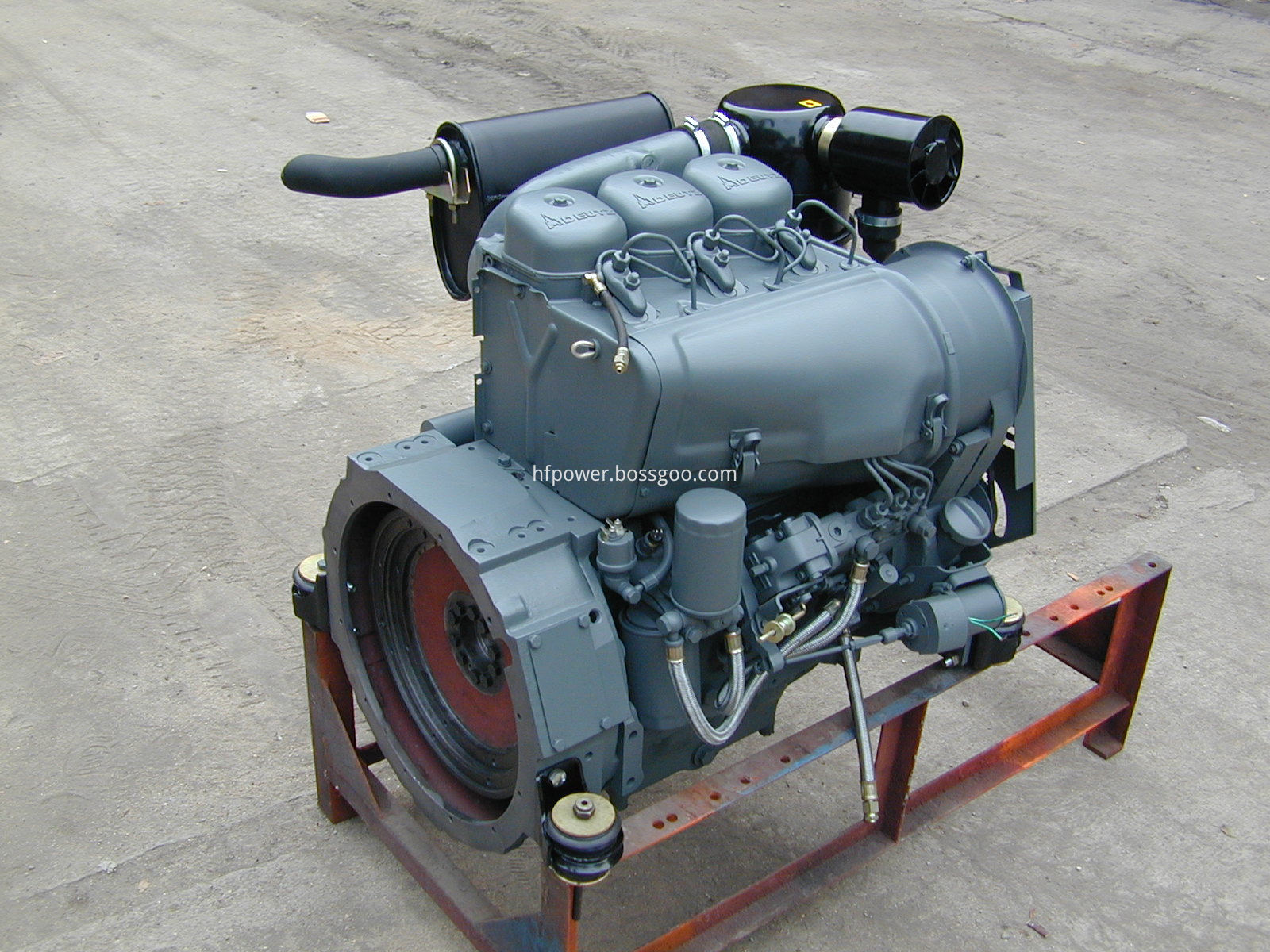

FL912/913 is air cooled Deutz Diesel Engine , the speed is between 1500rpm to 2500rpm , and the power is between 14kw(19hp) to 136kw(185hp).
FL912/913 series air cooled diesel engines are of the following advantages: Superior charactoristic: small size,light weight, low fuel consumption. Long service time, easy starting and convenient maitenance etc. Wide application : as power sources of carious equipments, such as engineering machineies. Mining machineries, automobiles , agricultural equipments, generating equipments, medium and small ships etc. Fine adaptablity: reliable in dry ,hot, cold weather and in poor water quality condition as well as in highland area and in low pollution requested working environment .
Air Cooled Diesel Engine,Marine Deutz Engines,Small Diesel Engine,Motor Diesel Engine Shijiazhuang Houfeng Trading Co.,Ltd , https://www.hfdieselengine.com
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.1, What materials do you mix? (Names of raw materials?)
2, What is the power fineness (or particle size)? (mesh, mm)
3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3)
4, How many kgs or liters to be mixed per batch?
5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)
6, What construction materials do you require? (Please choose below option)
A, all construction materials mild steel;
B, contact parts stainless steel, non-contact parts mild steel;
C, all construction materials stainless steel;
1 Working principle:
The CMPN series conical Nauta Mixer is comprised of vertical cone-shaped tank, two asymmetric screws, fixed or full-open top cover, arms, transmission unit. Two (single or three) screws rotate along their own central axis, we call this movement self-rotation; the arm drive the two screws rotate along the wall of mixing tank, we call this movement revolution. The self-rotation makes the materials elevated; the revolution makes the materials diffused in the radial; the materials elevated with self-rotation forms two material flows and fall down to fill in the material vacancy
at the bottom; so the triple compound movement make materials homogenously mixed inside the nauta mixer tank.
2 Performance &Â features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);Â
2.03 Agitators: shaft with welded screws;Â
2.04 Mixer tank: vertical, conical tank;
2.05 Shaft: two (single or three);
2.06 Mixing time: 5-30 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;Â
2.09 Rotation speed: fixed speed;
2.10 Seal: oil seal;
2.11 Openings: feeding inlet, manhole, and inspection & connection port;
2.12 Discharge valve: manual dislocation (plum blossom) discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);
Â
3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials, surface treatment; single (two or three) screw shafts; continuous mixing; gear box reducer; changeable speed; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.
Â
4 Technical specifications:
Mixer
model Working volume
(L)Rotation speed
(rpm)Motor
power
 (kw)Overall
dimension
(mm)Machine
weight
(kg)
CMPN-50
20-30
2&108
0.75
Φ600×H1200
120
CMPN-100
40-60
2&108
1.1
Φ700×H1500
200
CMPN-300
120-180
2&108
2.2
Φ900×H2000
500
CMPN-500
200-300
2&108
3
Φ1100×H2300
650
CMPN-1000
400-600
2&60
4
Φ1600×H2700
1200
CMPN-2000
800-1200
2&60
5.5
Φ1900×H3400
1550
CMPN-3000
1200-1800
2&60
7.5
Φ2100×H3700
2200
CMPN-4000
1600-2400
2&60
11
Φ2400×H4400
2500
CMPN-5000
2000-3000
2&60
15
Φ2500×H4600
3100
CMPN-6000
2400-3600
2&60
15
Φ2700×H4900
3600
CMPN-8000
3200-4800
2&60
18.5
Φ2800×H5300
4100
CMPN-10000
4000-6000
2&60
22
Φ3000×H5600
4500
CMPN-12000
4800-7200
2&60
22
Φ3100×H6000
4800
CMPN-15000
6000-9000
2&60
30
Φ3400×H6600
5100
CMPN-20000
8000-12000
2&60
45
Φ3700×H7100
6200
CMPN-25000
10000-15000
2&60
55
Φ3900×H7500
7300
CMPN-30000
12000-18000
2&60
75
Φ4200×H8000
8500
 5 Mixers Album:
 6 Application Industry:
7 Factory Album:
