[Meter's Latest Patent] Smart Induction Meter

Content Description

The utility model relates to the technical field of water meter equipment, in particular to an intelligent induction water meter.

Background of the invention

Traditional mechanical water meters are widely used because of their low cost, but they are very inconvenient for reading water meter data and are easy to be mistaken. Modern smart water meters use modern microelectronics, modern sensing technology, and smart IC card technology for water consumption. The measurement is easy to perform, but the result is complicated, the cost is expensive, and the intelligent water meter has to be complicatedly wired for a long distance, so the application is very inconvenient.

Summary of the Invention

In order to overcome the above shortcomings of the prior art, the purpose of the present invention is to provide a smart induction water meter with a simple structure, which is convenient to read and view the water meter data and does not require complicated power line arrangement.

The technical solution adopted by the utility model to solve the technical problems is: the intelligent induction water meter includes a read-only water meter module for measuring the water flow in the water meter housing, and an LCD display module for checking the water flow of the water meter. A plumber sends a data sending module for the current water meter data and a solar panel that is placed outside the water meter housing to supply power to the internal working parts, wherein: the solar panel is powered by a parallel structure of the power supply line to the photoelectric water meter. a module, an LCD display module, a data sending module and a storage capacitor, a normally open delay reset switch is arranged on a main circuit of the solar panel, and a data signal output line of the optical water meter read-only module is also connected with an LCD display module and data Send module.

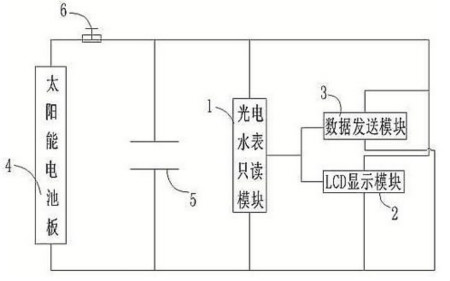

The figure shows the structure of the utility model

As a further improvement of the present invention, the data sending module is an RFID data sending module or an IC swipe sending module or an NFC data sending module.

Compared with the prior art, the utility model has the beneficial effects that the utility model has a simple structure and can provide power for the electronic components of the water meter through the solar panel arranged outside the housing, avoiding the long distance of the water meter only. The complex wiring requirements, by setting the normally open delay reset switch and the storage capacitor, can ensure that the solar panel has sufficient energy storage and can reduce the consumption of electronic components. At the same time, the data sending module and the LCD display module can be quickly and easily read or set. View water meter data.

For more information, please download the full specification of the patent.

More information on the latest technology of meter technology patents, please continue to pay attention to [instrument patents]
